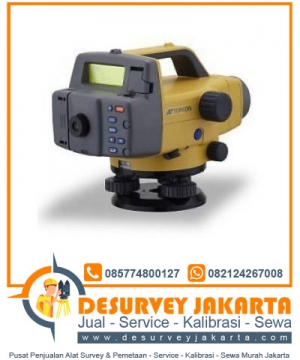

Deskripsi Harga Digital Level Topcon DL503
Harga Digital Level Topcon DL503
DESURVEYJAKARTA.COM Distributor Pusat Jual berbagai macam Alat Survey & Pemetaan Seperti Total Station, Digital Theodolite, Automatic Level Waterpass, GPS Geodetic, Accessories, Service Kalibrasi, Sewa & Jasa Pengukuran Topografi TERMURAH di Jakarta dan Seluruh Wilayah Indonesia.
Desurvey Jakarta menyediakan produk alat survey yang berkualitas, asli, serta bergaransi yang resmi. Kami juga memiliki banyak klien dari berbagai macam daerah yang sudah bermitra dengan Desurvey karena harga yang kami tawarkan merupakan harga terbaik yang ada di pasaran seluruh Indonesia. Percayakan kebutuhan alat survey dan pemetaan Anda hanya di Desurvey Jakarta.
Spesifikasi Digital Level Topcon DL503
The Digital Level Topcon DL503 incorporates cutting-edge technology to provide exceptional height, elevation and distance accuracy. With a working range of up to 328 feet, the Topcon DL has a height accuracy of 1/32 inch per kilometer double-run and a distance accuracy of 3/8 inch at 33 feet. Also, this construction level features a magnification that can provide accurate results.
The Topcon DL Digital Auto Level is equipped with a shock-resistant pendulum compensator with magnetic damping system that allows you to take a single measurement in only 2.5 seconds. Its automatic recognition of inverted staff automatically identifies the barcode staff’s direction and displays the result with a minus sign. With the world’s first wave and read technology, it reads faster and accurate results.
This Topcon auto level easily displays its results on the backlit LCD. Also, it has an internal memory of up to 2,000 points and can operate up to 16 hours using its Li-ion battery. Having an IPX4 rating, the instrument is protected from splashing water coming from any direction.
Configuration Options
The Topcon DL Digital Auto Level offers two magnification that can surely cater to any surveying job. Please choose from the drop-down menu above.
Features for the Topcon DL 503 28X Digital Auto Level
- Choice of 2 Magnifications
- Up to 328 feet working range
- Height accuracy of 1/32 inch per km double-run
- Distance accuracy of 3/8 inch at 33 feet
- Shock-resistant pendulum compensator with magnetic damping system
- Automatic recognition of inverted staff
- Wave and read technology
- Backlit LCD
- Internal memory up to 2,000 points
- 16 hours battery life
- Li-ion battery
- Protection from splashing water (IPX4)
Specifications for the Digital Level Topcon DL503
| General | |
| Protection Class | IPX4 (protected against splashing water) |
| Weight | 5.3 lbs (2.4kg) |
| Warranty | 1-year |
| Tripod Thread | 5/8-11 |
| Self-Leveling | yes |
| Units of Measure | Degrees, mm, m, in, ft |
| Dimensions | 6.2 x 10.1 x 7.2 in (15.8 x 25.7 x 18.2 cm) |
| Height Measurement | |
| Working Range | 5.3 ft. to 328 ft. (1.6 m to 100 m) |
| Measuring Time | <2.5 seconds |
| Minimum Light for Measurement | 20 lux at the surface of staff (with natural light) |
| Least Count | 0.001 m, 0.01 ft. |
| Distance Measurement | |
| Time | <2.5 seconds |
| Range | 5.3 ft. to 328 ft. (1.6 m to 100 m) |
| Display and Keypad | |
| Type | LCD (128 x 32 dot) |
| Keys | 8 keys (7 keys on front panel, 1 key on side panel) |
| Backlight | yes |
| Telescope | |
| Magnification | 32x (2112130B0); 28x (60892) |
| Objective Aperture | 1.8 in.(45 mm) |
| Resolving Power | 3″ |
| Field of View | 1°20′ |
| Minimum Focus | 5 ft. (1.5 m) |
| Image | Erect |
| Stadia Ratio | 100 |
| Stadia Constant | 0 |
| Compensator | |
| Type | Magnetic damping and pendulum mechanism |
| Range | ±15′ |
| Temperature | |
| Operating | -4°F to +122°F (-20°C to +50°C) |
| Storage | -40°F to +158°F (-40°C to +70°C) |
| Battery/Power | |
| Power Source | Rechargeable Li-Ion BDC46 |
| Battery Life | 16 hours |
| Battery Life Alert | yes |
| Features | |
| Circular Level Sensitivity | 10’/2 mm |
| Adjustment Knobs | 2 |
| Interface | RS-232C |
| Memory | 2,000 measurements |
| Accuracy | |
| Distance | ±10 mm at 10 m |
| Height | 0.6 mm per km double run |
| Functions | |
| Single Measurements | yes |
| Continuous Measurements | yes |
| Average | yes |
| Elevations | yes |
| Height Differences | yes |
| Cut and Fill | yes |
| Distance Stakeout | yes |
Desurvey Jual Digital Level Topcon DL503 Murah di Jakarta dan untuk informasi produk bisa langsung menghubungi kami HP: 085774800127, WA: 082124267008, Email: diah.desurvey@gmail.com.
