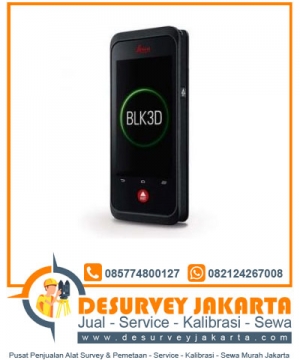

Harga Laser Meter Leica BLK3D

Take a picture. Measure anything.
The BLK3D captures images and places precise measurements at your fingertips. Share images and measurements in multiple formats.

The art of photogrammetry. Simplified.
Un-matched combination of a calibrated stereo-camera, advanced algorithms and real-time edge computing fused with leading Electronic Distance Measurement (EDM) technology.

Access projects. Anywhere, anytime.
Measure in your image – on the handheld imager, on the desktop, on-site or in the office.

Working with digital floorplans.
Create floorplans and import existing ones. Add measurable images. Document construction progress with multiple images over time.

New dimensions for 2D pictures.
The BLK3D creates images that contain precise three-dimensional measurements.

Progressive project documentation for AEC.
Capture critical moments throughout the life of a building.

Object detection and snapping.
Auto-Snapping uses computer vision technologies to select the right points for your measurements.

Store. Organize. Share.
Store your measurable images on the device and on desktop. Organize your projects by tagging measurable images with searchable keywords for easy recall and share them in multiple formats.

BLK3D ACCURACY

The BLK3D represents a new way to capture and document reality by combining measurement sensors, software, and on-device data processing. Its integrated stereo-camera captures images that provide a complete 3D record, with:

EDM accuracy of 1mm*
2D in-picture accuracy of +/- 3mm*
3D in-picture accuracy of +/- 6mm*

BLK3D Accuracy

*Measurement precision, accuracy, and reliability are dependent upon various factors including distance and position to object, baseline length, texture of object, light conditions, ambient temperature, calibration etc. Figures quoted assume normal to favourable conditions at close range and are subject to change.

BLK3D Product Specifications
Design & Physical Dimensions
Material	Black anodized aluminium
Dimensions	180mm x 77mm x 27mm
Weight	480g
Connector	USB-C
Display	5’’ HD IPS Capacitive Touch Display
P2P Support	Quick Mount on Leica DST 360
Power
Battery Type	Swappable, rechargeable Li-Ion battery
Capacity	14 Wh
Charging	via USB-C connector or external charger
Environmental
Robustness	Designed for any construction site
Operating Temperature	-10°- +50°C
Imaging
Camera	2 x 10MP with 80°Field of View
Algorithms	Advanced SGM algorithmic on-board (GPU) + EDM Structure from Motion (SFM) algorithmic for poses and orientation
Operating System & Processors
Operating System	Android 7 (Nougat) with GMS certification
CPU	Qualcomm Snapdragon 820E (Quad Core @ 2.35 GHz)
Storage	64GB
RAM	4GB
Communication	WLAN (5GHz), Bluetooth 4.1 and 2.1
Performance
Measurement Speed	<1 sec
Range	up to 20m (imaging); 250m (Electronic Laser Distance Measurement)
